Metal Oval Gasket: The Art of "Line Contact" High-Pressure Sealing and the Philosophy

In the extreme operating conditions of petrochemicals, energy and power, and high-end equipment manufacturing, the sealing reliability of flange connections serves as the final of defense to ensure production safety and equipment lifespan. When temperatures exceed 500°C, pressures surpass 10MPa, or the medium is highly corrosive, traditional non- and semi-metallic gaskets often fail due to creep, aging, or extrusion. As a pure metal solid sealing element, the Oval Metal Ring Gasket, with its unique "line" mechanism and "radial self-tightening" effect, has established an irreplaceable engineering status in harsh environments characterized by high pressure, high temperature, and pressure fluctuations. It is not only physical barrier in flange connections but also a concentrated embodiment of the "promoting sealing through line contact, and controlling rigidity with rigidity" design philosophy in the field of industrial sealing

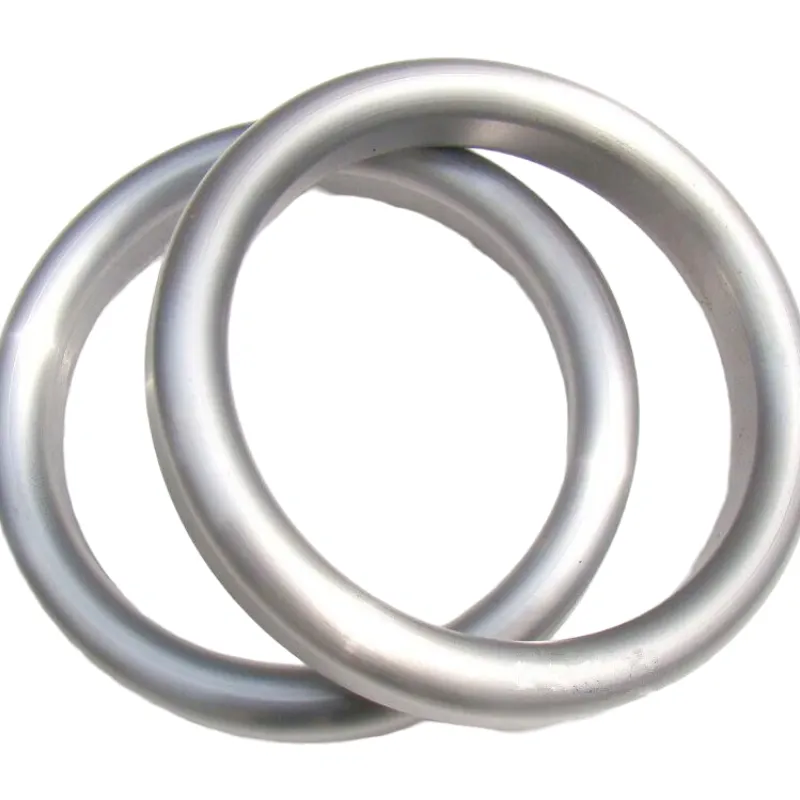

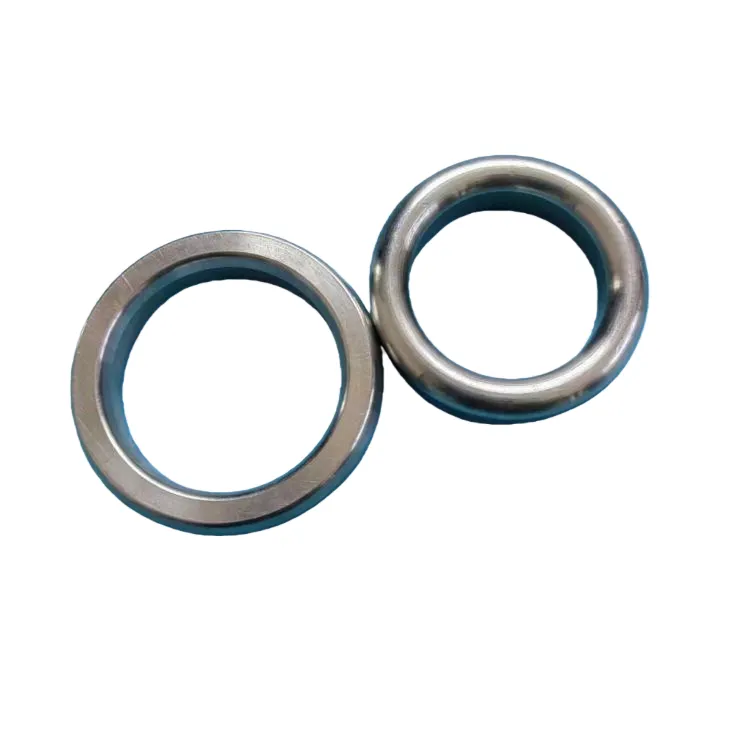

Structural Essence: Geometric Coupling of Trapezoidal Groove and Elliptical Cross-section The core value of the metal oval gasket from its precise geometric coupling with the trapezoidal groove of the ring joint (RJ) flange. Manufactured through forging, heat treatment, and machining processes, it features a standard elliptical crosssection. Materials range from soft iron, low carbon steel, 304/316 stainless steel, 321/347 stainless steel, Incon 600/625, Monel 400, Hastelloy C276, to titanium alloys, covering a wide temperature range from -200°C to 1000°C and ultra-high pressure conditions of 1500 bar. Unlike the "surface contact" of metal octagonal gaskets, oval gasket forms a "line contact" with the inner and outer surfaces (especially the outer surface) of the flange groove. Although this structure demands extremely high machining precision, it the gasket unique engineering advantages: under bolt preload, the gasket undergoes plastic deformation to fit tightly against the inclined surfaces of the trapezoidal groove, forming an initial sealing band; as the pressure rises, the medium pressure pushes the gasket to expand radially, further increasing the contact pressure between the gasket and the inclined surfaces of the flange groove, thereby achieving a radial self-ening effect where "the higher the pressure, the tighter the seal." It is worth noting that the self-tightening seal of the metal oval gasket is not absolute. As medium pressure increases, the flange and bolts also undergo elastic deformation, leading to a minute separation between the sealing surfaces and causing a relative decrease in the sealing contact pressure. Therefore, the oval is essentially a "semi-self-tightening seal" component, whose reliability depends on the precise matching of the gasket material hardness with the flange sealing surface hardness. In engineering, the gasket hardness must be 15-20 HB lower than that of the flange surface to ensure the gasket preferentially undergoes plastic deformation to fill microscopic gaps while avoiding damage to flange sealing surface. This hardness difference is the "rigid contract" for the metal oval gasket to achieve a reliable seal, and an insurmountable technical red line in selection and manufacturing

Performance Boundaries: A Dialectical Understanding of Advantages and Limitations The performance advantages of metal oval gaskets are particularly prominent under extreme operating. Their high-temperature and high-pressure resistance makes them the preferred sealing solution for media such as steam, hydrogen, synthesis gas, and corrosive solvents; the line contact structure end them with excellent initial sealing performance, maintaining a stable seal even under conditions with frequent pressure and temperature fluctuations; meanwhile, their sealing is durable and reliable, with a service life reaching several or even decades in applications such as oil and gas wellhead equipment, Christmas trees, high-pressure valves, and heat exchangers, significantly reducing equipment maintenance costs and the risk of unplanned downtime However, their limitations also require engineers to maintain a clear understanding. First, the line contact structure makes them extremely demanding in terms of machining precision; if the flange groove has scratches dents, or angular deviations, it can easily lead to leakage; second, metal oval gaskets are rigid sealing components that are extremely sensitive to the uniformity of bolt preload; if a non-diagonal crosspattern or non-stepwise incremental tightening method is used during installation, it will cause uneven loading and deformation of the gasket, destroying the continuity of the sealing band; furthermore, their resistance is limited by the material, such as the maximum operating temperature of 540°C for 304 stainless steel and 815°C for 31 stainless steel; exceeding the temperature limit will cause material softening and strength reduction, resulting in the loss of self-tightening sealing capability; in addition, the procurement cost of metal gaskets is higher than that of non-metallic gaskets, and due to the line contact structure, they cannot be reused, requiring a new gasket replacement after each disassembly, which increases maintenance costs

Installation and Maintenance: Critical Control Points in Engineering Practice The sealing reliability of metal oval gaskets depends not only on the quality of the product but more importantly on the refined control of installation and maintenance. Before installation, the flange sealing surface and the gasket surface must be thoroughly cleaned to remove oil, rust, scratches, and old gasket residues, ensuring the contact surfaces are clean and flat; meanwhile, the dimensional accuracy and surface roughness of the flange groove must be checked, and if defects exist, the flange be repaired or replaced. During installation, the gasket must be accurately placed into the trapezoidal groove, avoiding tilting or warping, to ensure the gasket fits perfectly with the groove surface; tightening the bolts, a diagonal cross-pattern and incremental step-by-step method must be adopted, gradually reaching the specified torque in 3-4 stages, and the uniformity of flange gap must be checked after each tightening to ensure the gasket is evenly loaded and to avoid deformation due to uneven loading. In the maintenance phase, a gasket usage log must be to record the installation time, operating parameters, tightening torque, and leakage conditions, providing data support for subsequent selection and installation. For metal oval gaskets, as they belong to a line- structure, they cannot be reused; a new gasket must be replaced after each disassembly to avoid sealing performance degradation caused by reuse. Meanwhile, the bolt preload of the flange system must checked regularly; if bolt loosening or an increase in the flange gap is detected, it must be retightened promptly to avoid leakage caused by insufficient preload

Technological Evolution: From Standardization to Customized Operating Condition Adaptation With the iteration of industrial sealing technology, metal oval gaskets are accelerating their from standardized supply to customized adaptation for specific operating conditions. At the material level, the R&D of new high-temperature alloys and corrosion-resistant alloys has further expanded the and media resistance range of gaskets. For example, Inconel 625 alloy can serve long-term at 1000°C, and Hastelloy C26 can withstand strongly oxidizing media; at the structural level, by optimizing cross-sectional shapes and contact surface designs, the initial sealing performance and resistance to eccentric loading of gaskets have improved. For instance, the "enhanced R-type oval gaskets" introduced by some manufacturers further enhance sealing performance while maintaining the advantages of line contact; at the testing level, the popular of third-party test reports and the mandatory requirement for type test certificates have improved product quality transparency and reliability. For example, the standardization of testing items such as helium mass spectrometry leak detection metallographic structure analysis, and hardness testing provides a scientific basis for engineering selection. Meanwhile, the integration of digital technology has brought a new paradigm to the selection and application of oval gaskets. By establishing gasket performance databases and operating condition matching models, engineers can input parameters such as media, temperature, pressure, and flange standards online to quickly obtain the optimal selection; by embedding sensors and Internet of Things (IoT) technology, the sealing status of flange systems can be monitored and warned in real-time, achieving a shift from "post-" to "predictive maintenance". These technological evolutions not only expand the performance boundaries of metal oval gaskets but also drive the paradigm upgrade of industrial sealing from "experience-driven" to "-driven".

Conclusion: The Engineering Rationality Behind Line Contact The widespread application of metal oval gaskets reflects a paradigm shift in industrial sealing technology from " filling" to "rigid self-tightening." It retains the "rigid" advantages of metal materials, such as high temperature resistance, high pressure resistance, and corrosion resistance, while achieving self-tightening sealing effect of "promoting sealing through line contact" via the geometric coupling of trapezoidal grooves and oval cross-sections, providing a durable and reliable sealing guarantee extreme operating conditions. This line contact characteristic enables it to continuously play an irreplaceable role across a wide range of scenarios, from conventional high pressure to ultra-high pressure, and from high temperature ultra-high temperature. With the continuous explosion of emerging industries such as new energy, deep-sea oil and gas extraction, and supercritical power generation, the performance requirements for metal oval are also constantly rising. In the future, higher temperature resistance, stronger corrosion resistance, greater intelligence, and more customization will become the main directions for the technological development of metal oval gaskets For engineers and material researchers, deeply understanding the structural essence, performance boundaries, and selection logic of metal oval gaskets not only helps in making better selection decisions for current projects but also critical technical knowledge to cope with more stringent sealing challenges in the future. Within these seemingly cold metal ring gaskets lies the engineering rationality and scientific spirit of the continuous progress of industrial sealing technology
