Ceramic fiber gasket: a must-have solution for high-temperature industrial sealing and insulation

In high-temperature industrial production environments, sealing and insulation accessories may seem inconspicuous, but they are the core key to ensuring stable equipment operation, eliminating safety, and reducing energy and heat loss. Ordinary rubber, wood, and standard asbestos gaskets often struggle to withstand complex working conditions involving high temperatures, sudden temperature fluctuations, and mild acidbase corrosion, making them highly susceptible to aging, cracking, melting, and air or heat leakage. In contrast, ceramic fiber gaskets, with their extreme high-temperature resistance, stable and sealing properties, and excellent corrosion resistance, have become the mainstream sealing and insulation material for high-temperature industries such as metallurgy, power, chemical engineering, and kilns, serving an indispensable "protective barrier" for industrial high-temperature equipment.

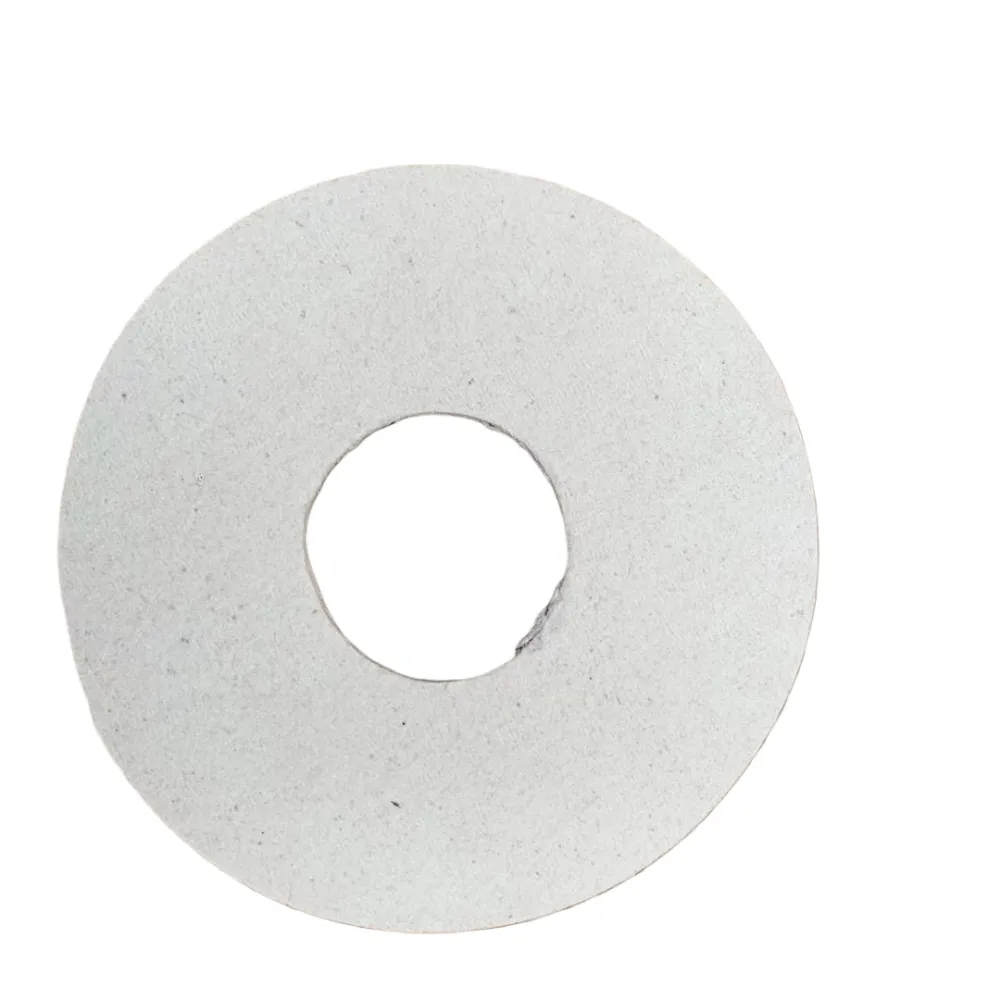

I. What is a ceramic fiber gasket? A ceramic fiber gasket is a flexible sealing and insulation component made with aluminum silicate ceramic fiber as the substrate, combined with eco-friendly binders, and manufactured through processes such as dry and wet forming, high-temperature curing, precision cutting, and die-cutting. Some high- products undergo needle punching reinforcement and adhesive layer strengthening to further enhance structural stability and compressive toughness. Its substrate is mainly composed of high-melting-point inorganic oxides such as aluminum oxide silicon dioxide, forming a uniform and dense porous network structure internally. Unlike traditional rigid refractory materials, it combines flexibility, non-brittleness, and high strength. It can customized to any size or irregular shape according to equipment requirements, adapting to various complex sealing scenarios. Meanwhile, it is completely asbestos-free, non-toxic, and environmentally friendly, with modern industrial safety and environmental standards.

II. Core Performance Advantages, Outperforming Traditional Gaskets The reason why ceramic fiber gaskets can replace traditional gaskets and the preferred choice for high-temperature working conditions lies in their comprehensive performance that fully adapts to extreme industrial environments. Every characteristic precisely addresses industrial pain points: 1. Extreme High- Resistance, No Melting or Deformation at High Temperatures This is its most core advantage. Conventional ceramic fiber gaskets have a continuous safe operating temperature of up to 1000°C and an instantaneous temperature resistance of up to 1260°C. They do not burn, melt, shrink, or become brittle in high-temperature environments. Even under longterm continuous high-temperature baking or intermittent high-temperature shock conditions, they can still maintain structural integrity without sealing failure, perfectly adapting to ultra-high-temperature scenarios such as industrial kil, high-temperature pipelines, and electric heating equipment. 2. Ultra-Low Thermal Conductivity, Efficient Energy-Saving Insulation Relying on a unique porous fiber interwoven structure the gasket can effectively block air convection and heat conduction. Its thermal conductivity at room temperature is only 0.055–0.065 W/(m·K offering excellent insulation and heat retention performance. It can both prevent high-temperature heat from leaking out of the equipment, reducing workshop heat loss and equipment energy consumption, and isolate the impact external low temperatures and airflow on the equipment interior, stabilizing the equipment's operating temperature and significantly improving industrial production energy efficiency. 3. Strong Chemical Stability, Corrosion and Aging ResistanceThe product possesses excellent acid and alkali resistance, solvent resistance, and oil erosion resistance, making it suitable for a wide pH range of 0-14. At the same time, can withstand corrosion from liquid ammonia, gasoline, industrial solvents, and mild flue gas. In complex working conditions such as chemical corrosion, metallurgical flue gas, and oil and gas transportation, it not corrode or age, with a service life far exceeding that of ordinary rubber and paper gaskets, reducing frequent replacement costs. 4. Flexible Impact Resistance, Extremely High Adaptability rigid refractory materials that are prone to cracking, ceramic fiber gaskets are tough, resistant to thermal shock, and resistant to wind erosion. They can withstand the thermal expansion and contraction shocks caused sudden temperature changes without easily cracking or falling off. Meanwhile, the material is soft and can be easily cut, bent, and punched, offering excellent fit. It can perfectly adapt to sealing gaps such as flanges, valves, furnace doors, and observation ports, effectively eliminating air, heat, and gas leakage problems. 5. Insulating and Environmentally Friendly, and Durable It possesses excellent electrical insulation properties and can be used for the insulating sealing of various high-temperature electrical and electric heating equipment. It is completely asbestos-free and free harmful substance volatilization throughout its entire process, producing no toxic gases during high-temperature use, which meets industrial environmental protection requirements. At the same time, it has excellent pressure resistance rebound performance, is not easily deformed under long-term pressure, and provides a long-lasting and stable sealing effect

III. All-scenario industrial applications, covering high-temperature working conditions across multiple industries With its versatile performance advantages, ceramic fiber gaskets are widely used in various scenarios requiring high-temperature sealing, thermal insulation, electrical insulation, and protection. The core application fields are as follows: 1. Industrial Kiln IndustryUsed for door sealing, body joints, observation ports, and flue flange sealing of industrial kilns, drying ovens, and sintering furnaces, solving problems of air and heat leakage from the body and temperature loss, improving the heating efficiency of the kiln, and reducing energy consumption and loss. 2. Power and Metallurgy Industry Suitable for flange sealing of high-temperature, boilers, steam turbines, and hot air ducts in power plants; thermal insulation protection and sealing buffering for metallurgical steelmaking and ironmaking equipment, molten steel outlets, and stopper rods withstanding the impact of high-temperature metal airflows and flue gases. 3. Petrochemical Industry Used for the sealing and thermal insulation of reaction vessels, high-temperature valves oil and gas pipelines, and high-temperature chemical equipment, resisting corrosion from acids, alkalis, oil, gas, and solvents, ensuring the long-term stable operation of chemical equipment, and eliminating the risk of medium leakage. 4. Home Appliances and Electric Heating Equipment Suitable for the insulation, thermal insulation, and sealing filling of ovens, high- drying ovens, electric heating tubes, industrial heating equipment, and electrical components, combining multiple effects of high-temperature resistance, insulation, and noise reduction. 5. Aerospace, Automotive and General Machinery Used for the thermal insulation sealing and stress buffering of automotive high-temperature components, small aerospace high-temperature equipment, high-temperature fans, and dust removal equipment meeting the requirements of lightweight and highly stable working conditions.

IV. Practical Tips for Selection and Installation Only high-quality products paired with correct selection and installation methods can maximize their utility avoid sealing failure or premature wear: 1. Select specifications based on needs: Standard thicknesses range from 1mm to 10mm, and the corresponding thickness can be chosen based on size of the sealing gap and the temperature; for ultra-high temperature conditions (above 1000°C), high-purity thickened models are preferred, while reinforced adhesive layer models recommended for corrosive conditions. 2. Precise cutting and fitting: Before installation, cut precisely according to the dimensions of the sealing area to ensure the gasket fits the joint completely without wrinkles gaps, or offsets, thereby avoiding sealing gaps. 3. Standardized tightening and fixing: Tighten flanges, furnace doors, and other fixing parts evenly to avoid excessive local pressure that cause the gasket to be squeezed and damaged, and do not leave the pressure too loose, which would result in an improper seal. 4. Regular inspection and maintenance: After long-term high- operation, regularly check whether the gasket has accumulated dust or become compacted and aged, and clean or replace it in a timely manner to continuously ensure the sealing and insulation effect.

Summary: The Cost-Effective Sealing Choice for High-Temperature Industries In high-temperature industrial production, the stability of sealing accessories directly determines equipment energy consumption, production safety, and and maintenance costs. Ceramic fiber gaskets integrate multiple advantages such as high-temperature resistance, low thermal conductivity, corrosion resistance, strong flexibility, environmental safety, and high cost-effectiveness, perfectly solving the pain points of traditional gaskets being unable to withstand high temperatures, easily aging, easily corroding, and having poor sealing. Whether for large-scale industrial kilns, power and equipment, or small electric heating devices, it can provide stable and long-lasting sealing and insulation protection. It is a fundamental core material for reducing costs, increasing efficiency, and avoiding safety hazards high-temperature working conditions, and is currently one of the most cost-effective solutions in the field of industrial high-temperature sealing
