Graphite composite gasket: A comprehensive analysis of the "universal cornerstone" for industrial hi

In industrial sectors such as petrochemicals, electric power and thermal power, metallurgy, and pharmaceuticals, the sealing performance of equipment flanges, pipelines, and directly determines the stability, safety, and environmental friendliness of the production line. Even a tiny seal leak can not only cause medium loss and increased energy consumption, but also potentially trigger hazards such as corrosion, explosions, and environmental pollution. Among numerous sealing gaskets, the graphite composite gasket, with its comprehensive advantages of high temperature and high pressure resistance, strong corrosion resistance, low leakage, has become the mainstream choice for industrial static sealing scenarios, serving as an undisputed sealing cornerstone under harsh working conditions. Many practitioners often confuse graphite composite gaskets with ordinary asbestos gaskets, gaskets, and pure graphite gaskets, unaware that the uniqueness of its composite structure makes it suitable for the vast majority of complex industrial working conditions. Today's practical guide will comprehensively you understand the structure, advantages, selection, application, and installation and maintenance tips of graphite composite gaskets.

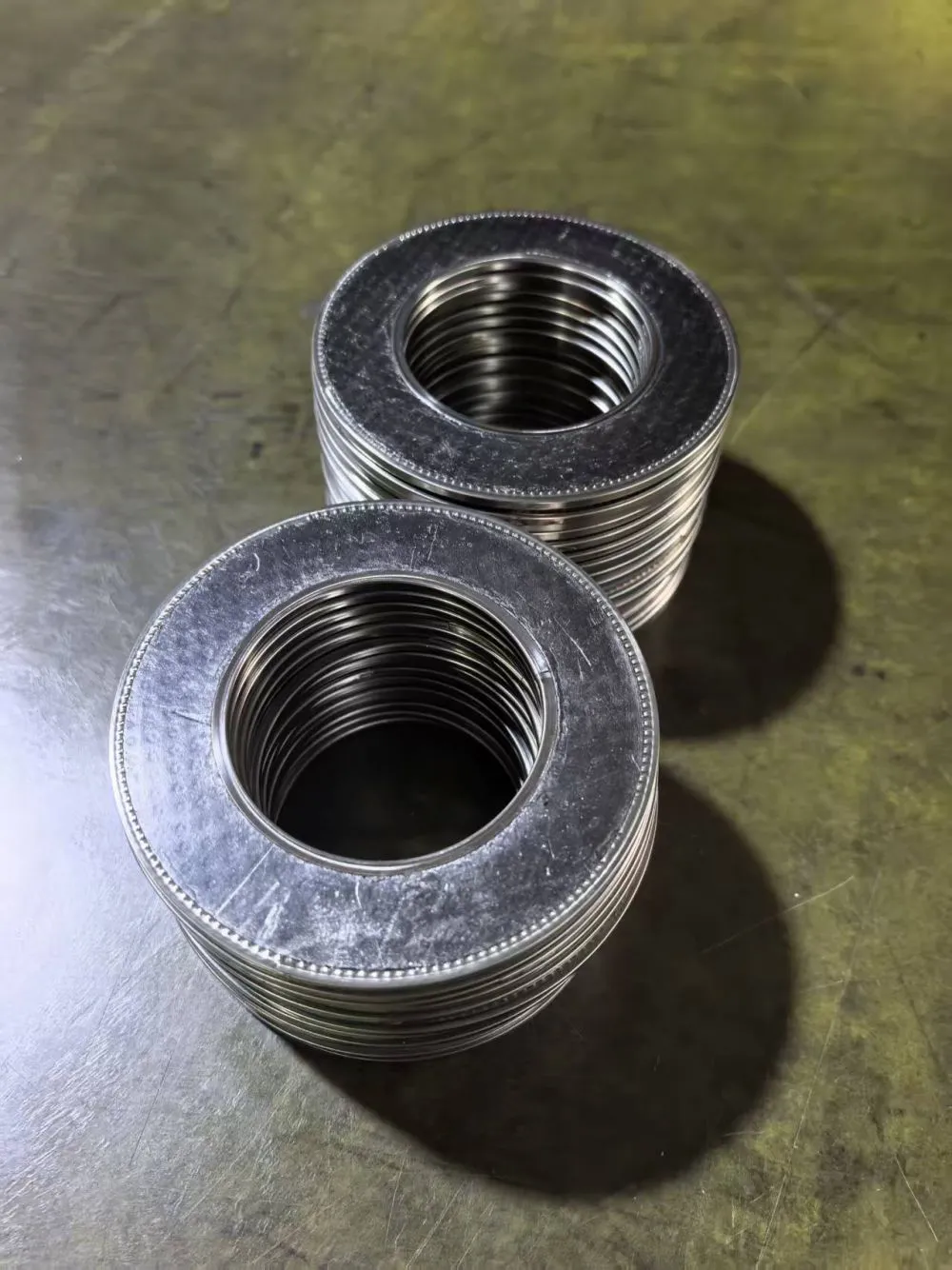

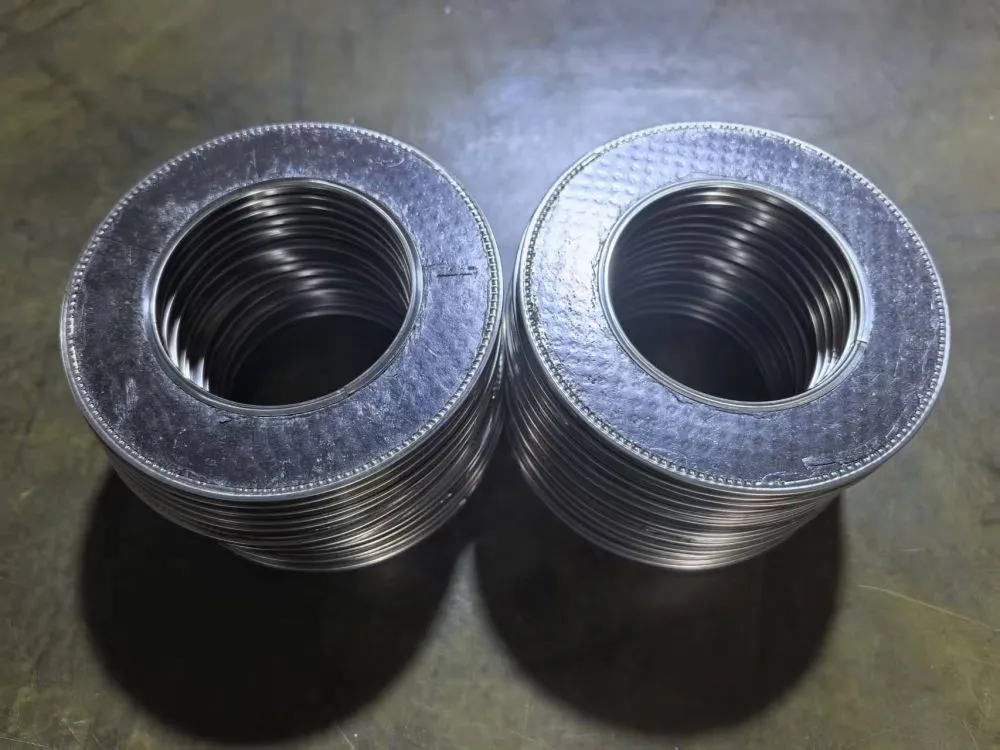

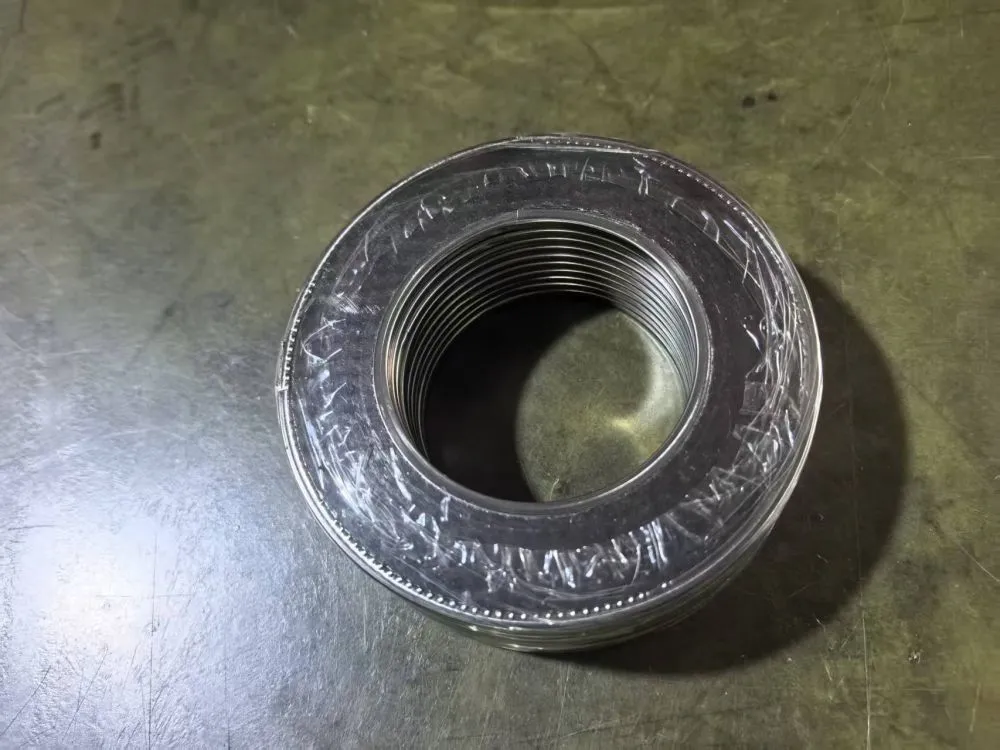

Its core structure is divided into two parts: Sealing layer: Made of high-purity flexible graphite sheet, it is soft and resilient capable of tightly fitting the microscopic gaps of the flange sealing surface to completely block medium leakage, while possessing excellent high-temperature and corrosion resistance. Reinforcing core layer: Embedded with galvanized steel, 304 or 316L stainless steel punched plates, mesh plates, or flat plates, which are tightly bonded to the graphite layer through a mechanical composite, significantly enhancing the tensile and compressive strength of the gasket, preventing deformation, fracture, and collapse under high-temperature, high-pressure, and equipment vibration conditions. Some customized feature metal edge reinforcement to further increase rigidity, facilitate installation and positioning, and prevent damage during assembly and disassembly. Compared to traditional gaskets, the graphite composite gasket has a more stable and a longer service life, while supporting non-standard customization such as circular, irregular, perforated, and split shapes, making it suitable for various non-standard equipment sealing scenarios

Two Core Advantages: Why Graphite Composite Gaskets are the Top Choice for Industrial Sealing? In industrial sealing selection, composite gaskets can replace asbestos rubber gaskets, ordinary iron-clad gaskets, and pure PTFE gaskets. The core lies in their irreplaceable comprehensive performance, with five core advantages suitable for harsh operating: 1. Ultra-wide temperature range, resistant to high and low temperatures Relying on a metal-reinforced structure, the pressure resistance of graphite composite gaskets can reach up to 42MPa, making them suitable for high-pressure operating conditions such as ultra-supercritical thermal power, nuclear power, and hydrogenation units. They have low pretightening force requirements, achieving a tight seal without excessive fastening force. They possess extremely strong resistance to equipment vibration and pressure fluctuations, making them unlikely to loosen or leak during long- operation, achieving a low-emission and zero-leakage sealing effect. 2. High-pressure tolerance, strong sealing stability High-purity flexible graphite has stable chemical and can withstand corrosion from the vast majority of media, including acid and alkaline solutions, steam, oil, organic solvents, and industrial water, without being eroded, aged, deformed, or. Meanwhile, the material is environmentally friendly, free of harmful substances like asbestos, meets modern industrial environmental production standards, and is suitable for clean production scenarios such as pharmaceuticals and food. 3. Corrosion resistance, suitable for various media The gaskets have excellent flexibility and low requirements for the flatness and smoothness of the flange sealing surface. They can automatically compensate for minor, deformations, and gap defects on the flange surface, making them suitable for various flange types such as flat and raised faces. Additionally, they are lightweight, easy to cut, and to position, with convenient assembly and disassembly, significantly reducing the labor cost of equipment maintenance and replacement. 4. Wide adaptability, lowering installation barriers Compared to the shortcomings of pure graphite being easily damaged, PTFE gaskets being unable to withstand high temperatures, and asbestos gaskets being prone to aging, graphite composite gaskets balance strength and sealing performance. They are resistant to aging fatigue, can be reused for a long time, effectively reduce the frequency of gasket replacement, and lower equipment operation and maintenance costs. 5. Durable and long-lasting, higher cost- Compared to the shortcomings of pure graphite gaskets being easily damaged, PTFE gaskets being unable to withstand high temperatures, and asbestos gaskets being prone to aging, graphite composite gaskets balance strength and sealing. They are resistant to aging and fatigue, can be reused for a long time, effectively reduce the frequency of gasket replacement, and lower equipment operation and maintenance costs

III. Mainstream Classifications and Precision Selection Guide The performance difference of graphite composite gaskets primarily depends on internal metal reinforcement material. Different materials are suitable for completely different operating conditions. Incorrect selection can easily lead to short-term leakage and failure. The mainstream industry classifications and their applicable selection are as follows: 1. Carbon Steel Galvanized Graphite Composite Gasket Lowest cost, moderate rigidity, suitable for normal temperature, low pressure, and non-corros operating conditions. Mainly used for water and heating pipelines, ordinary water and oil transmission equipment, and low-pressure general flange sealing. It is the basic selection for civil and ordinary industrial. For models such as sheet-reinforced, mesh-reinforced, and metal-edged types, equipment with high-frequency vibration or frequent disassembly and assembly should prioritize the sheet-reinforced edged style for better stability. 2. 304 Stainless Steel Graphite Composite Gasket Strongest versatility, high temperature resistance, oxidation resistance, and high strength. Suitable medium-to-high temperature, medium-to-high pressure, and mildly corrosive operating conditions. Widely used in conventional industrial equipment such as boiler flanges, high-temperature steam, ordinary pressure vessels, heat exchangers, and valve covers. 3. 316L Stainless Steel Graphite Composite Gasket Optimal corrosion resistance, resistant to acids, alkalis, organic solvents, and resistant to intergranular corrosion. Suitable for highly corrosive, high-temperature, and high-pressure precision chemical operating conditions. It is the specialized selection for chemical production, hydrogenation units, pharmaceutical equipment, and metallurgical corrosive media pipelines. With its comprehensive performance advantages, graphite composite gaskets have become the standard sealing solution in multiple industries. Core application fields: Metallurgical Thermal Power: High-temperature thermal power networks, metallurgical furnace piping, and high-pressure heat exchange equipment sealing; V. Installation and Maintenance: Avoiding Pit to Extend Service Life Clean the flange sealing surface, remove rust, oil stains, impurities, and burrs to ensure the sealing surface is flat and clean; check the gasket for, wrinkles, or deformation, and verify that the specifications, material, and operating conditions match. 3. Usage Taboos Regularly inspect flange sealing parts to observe any or scaling; for high-temperature equipment, regularly re-check bolt tightness to compensate for the thermal relaxation margin of the gasket; in humid and corrosive environments, prioritize the use of316L material to avoid corrosion and damage to the metal core. Not universal. Pure graphite gaskets have no metal reinforcement and are relatively soft in texture. They are prone cracking and collapsing under high pressure and vibration, making them suitable only for low-pressure and normal temperature scenarios; graphite composite gaskets have higher strength, are suitable for harsh operating conditions, their stability far exceeds that of pure graphite gaskets. Pitfall 3: Does a tighter installation yield a better sealing effect? With its core advantages of high temperature resistance, pressure resistance, strong corrosion resistance, high resilience, and wide applicability, the graphite composite gasket has solved many pain points of traditional sealing gaskets, becoming one of the most cost- and versatile sealing accessories in industrial static sealing systems. Rational selection to match operating conditions, along with standardized installation and maintenance, can not only completely eliminate equipment leakage hazards and ensure the safe stable operation of production lines, but also significantly reduce operation and maintenance costs, making it an indispensable "sealing guardian" in industrial production
