Metal oval gaskets: The hardcore choice for high-temperature and high-pressure industrial sealing.

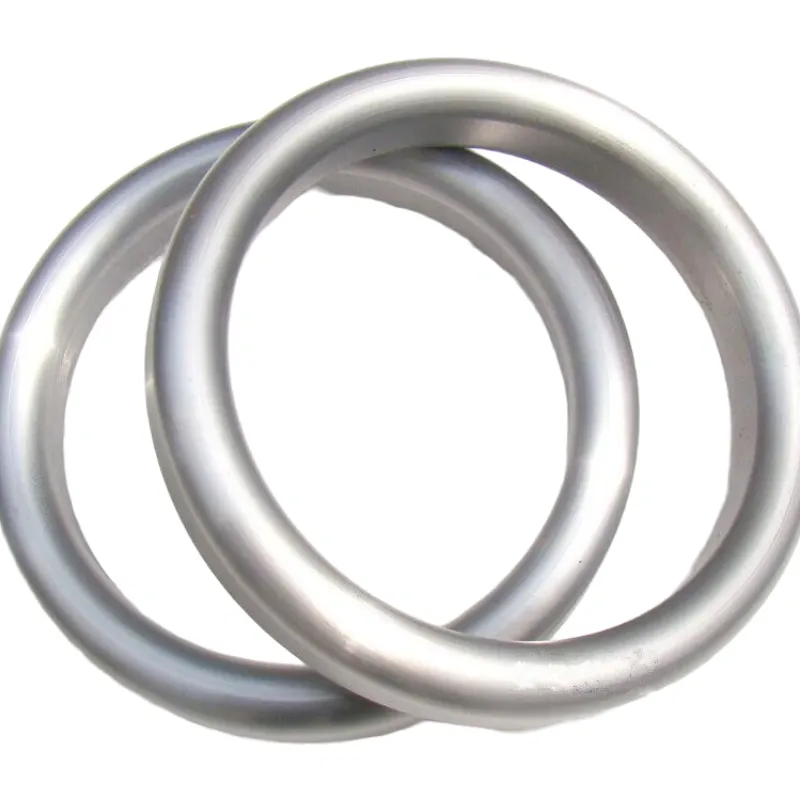

I. What is a metal oval gasket?

Unlike the passive compression sealing of ordinary flat gaskets, the metal oval gasket adopts the principle of radial selftightening sealing: the outer diameter of the gasket is slightly larger than the inner diameter of the flange trapezoidal groove (conventional difference of 0.3-0.6mm After bolt pre-tightening, the oval cross-section undergoes uniform elastic deformation under force, fitting tightly with the inner and outer inclined surfaces of the trapezoidal groove; during equipment operation the medium pressure further pushes the gasket to expand radially, strengthening the sealing effect. The higher the pressure, the more stable the sealing performance, making it perfectly suitable for dynamic fluctuating operating conditions Its standard sealing contact angle is 23°, with uniform force distribution and high fitting accuracy, structurally avoiding the risk of leakage.

II. Core Advantages: Why Choose Oval Gaskets for High-Pressure Conditions? 1. Excellent dynamic sealing with strong resistance to operating condition fluctuations 2. Resistant to ultra-high temperatures and pressures, suitable for extreme conditions 3. Stable structure, resistant to deformation and failure 4. Strong adaptability with high installation tolerance 5. Corrosion and oxidation resistant, suitable for complex media

III. Main Material Classifications and Application Scenarios - Carbon Steel/Soft Iron: High cost-performance ratio, good plasticity, and easy to seal; suitable for non-corrosive, high-temperature, and high-pressure steam pipelines and ordinary thermal equipment; stable and durable under conventional temperature conditions. - 316L Stainless Steel: Upgraded high corrosion resistance version, extremely resistant to chloride ions, acids, and alkalis; suitable for harsh conditions such as desulfurization, corrosive chemical pipelines, and offshore drilling platforms. - Special Alloys (Hastelloy, Monel): Ultra-strong corrosion resistance and resistance to high/low temperatures; suitable for special extreme conditions such as strong acids and alkalis, high-purity media, and ultra-low temperatures; widely used in high-end precision industrial equipment. Metal oval gaskets are primarily designed for high-temperature, high-pressure, dynamic fluctuation, and high-reliability sealing scenarios, widely applied in core heavy industry fields: - Chemical and Petrochemical Industry: High-pressure reactors, heat exchangers, desulfurization and denitrification equipment, and corrosive media pipeline flanges; - Heavy Industry Pressure Vessels: Flange sealing for various high-pressure storage tanks, pressure units, and heavy-duty valve covers; V. Oval Gaskets vs. Octagonal Gaskets: Core Differences in Condition Selection Metal Oval Gaskets: Better elasticity and larger rebound margin, stronger dynamic resistance to fluctuations; suitable for equipment with frequent temperature and pressure changes or frequent start-stop operations; higher sealing tolerance and less prone to leakage. Simple Summary: Choose oval gaskets for dynamic fluctuations, and octagonal gaskets for static constant pressure. High-quality components paired with standardized installation are essential to achieve the best sealing effect and avoid human-induced leakage failures: 3. Inspect the gasket appearance for scratches, deformation, rust, or cracks; ensure the ovality tolerance is controlled within 0.05mm to prevent defective components from being installed; 5. Follow the principles of diagonal, incremental, and uniform bolt tightening; prohibit one-sided violent tightening in a single pass to prevent excessive gasket deformation and damage; VII. Conclusion Engineering selection does not require blindly following trends. By matching the corresponding materials and standard specifications based on equipment pressure, temperature, media characteristics, and operating condition fluctuations, long-term zero-leakage sealing can be achieved, making industrial sealing safer and more worry-free.

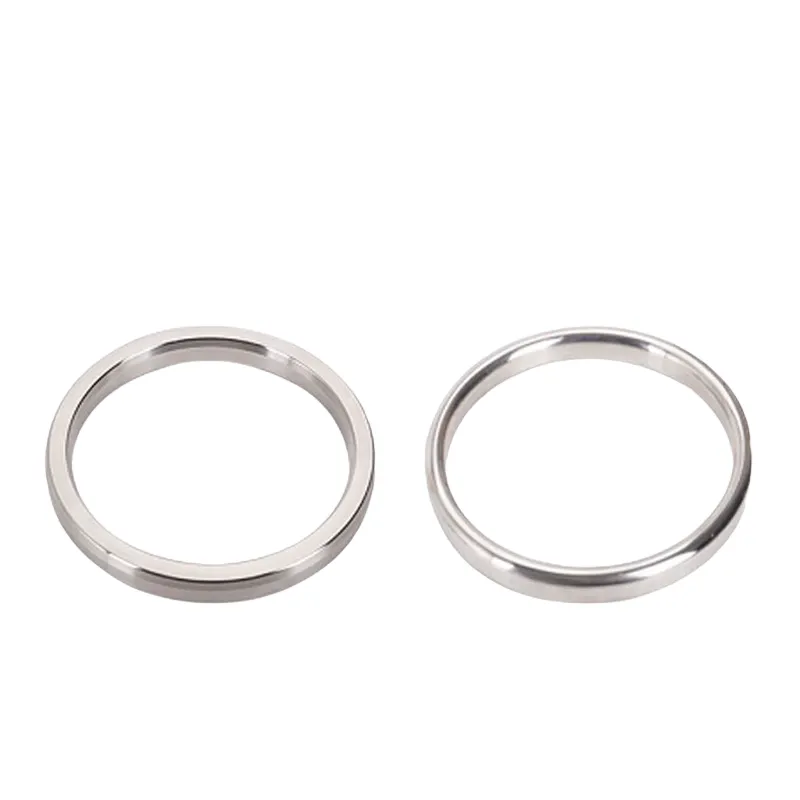

V. Oval Gasket vs. Octagonal Gasket: Core Differences in Application Selection Metal Oval Gasket: Better elasticity, larger rebound margin, stronger fluctuation resistance, suitable for equipment with frequent temperature and pressure changes or frequent start-stop operations, higher sealing tolerance, and less prone to leakage. Simple Summary: Choose oval gaskets for fluctuations, and octagonal gaskets for static constant pressure.

VI. Installation and Usage Precautions 1. Thoroughly clean the flange trapezoidal groove before installation, removing rust, oil stains, old gasket residues, burrs to ensure the groove surface is flat and smooth; 5. Place the gasket centered and aligned, strictly prohibiting any offset or tilting to avoid sealing failure caused by uneven pressure;8. For newly installed equipment operating under high temperature and high pressure, it is recommended to retighten the bolts after the initial heating and pressurization run to compensate for the caused by thermal expansion and contraction.

VII. Summary Engineering selection does not require blindly following trends. By matching the corresponding materials and standard specifications based on equipment pressure, temperature, medium characteristics, condition fluctuations, long-term zero-leakage sealing can be achieved, making industrial sealing safer and more worry-free.
