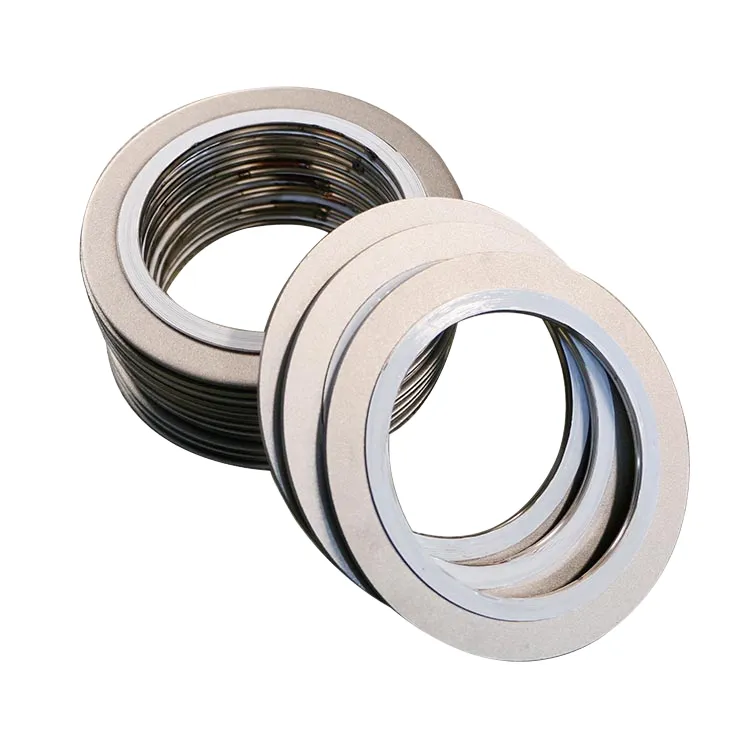

Metal Winding Gasket: The "Elastic Contract" of Industrial Sealing

In the complex operating conditions of petrochemicals, energy and power, metallurgy, and new energy equipment, the sealing reliability of flange connections directly determines the safety and operational efficiency of the equipment. Facing the severe challenges of high temperature and high pressure, alternating hot and cold, media corrosion, and frequent pressure fluctuations, gaskets made of a single material struggle to balance strength and sealing performance. As a classic semi-metallic composite sealing component, the Spiral Wound Gasket, with its alternating winding structure of "metal skeleton   flexible," finds a delicate balance between rigid support and elastic compensation. It is not only a core static sealing component for the connections of pipelines, heat exchangers, valves, and pressure vessels, but a concentrated embodiment of the "combining rigidity and flexibility, adapting to multiple operating conditions" design philosophy in the field of industrial sealing.

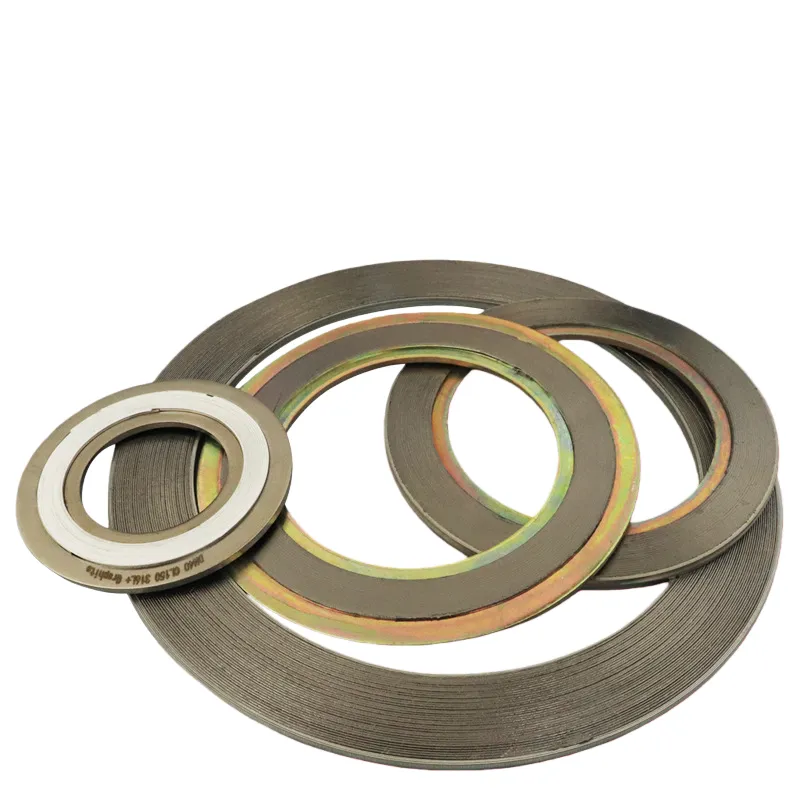

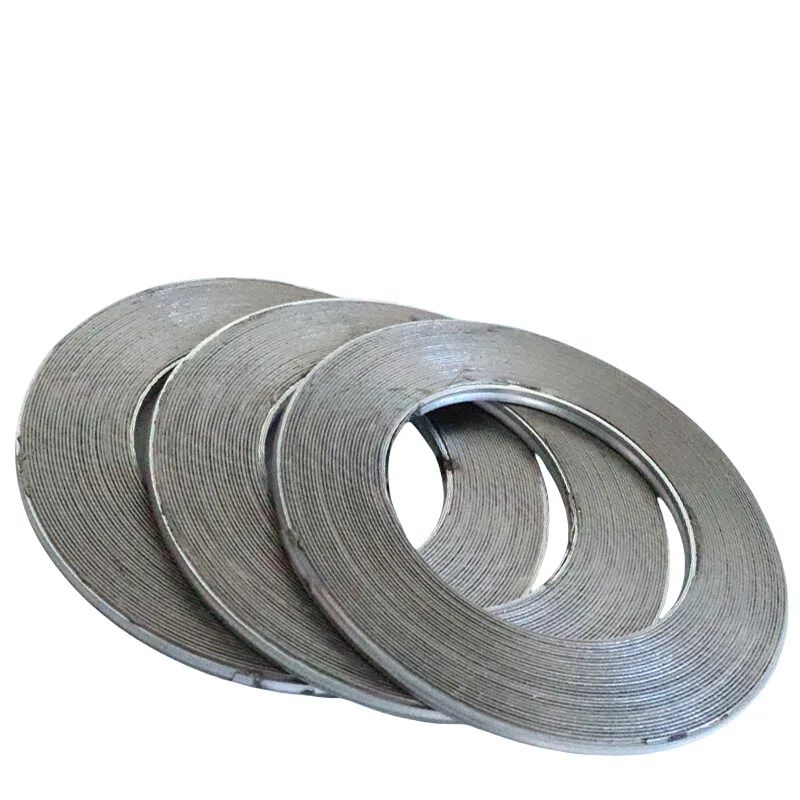

Structural Essence: The "Alternating Symbiosis" of Metal and Filler The core value of metal-wound gaskets stems from their spiral winding structure and material synergy mechanism. They are precisely wound by alternating high-strength metal strips (such as 304/316/321 stainless steel, alloy, Inconel 625, etc.) and flexible non-metallic filler strips (such as flexible graphite, PTFE, ceramic fiber, etc.), forming an elastic spiral. The metal strip acts as the skeleton, providing excellent mechanical strength, compression resistance, and corrosion resistance to resist media erosion and high-pressure impact; the filler strip acts as the sealing layer, plastic deformation under the bolt preload to fill the microscopic irregularities of the flange surface, achieving the initial seal. This "alternating symbiosis" structure endows the gasket with dual: the rigidity of the metal skeleton ensures the gasket's supporting strength under high pressure, preventing excessive compression and extrusion; the flexibility of the filler strip provides excellent compression recovery performance, of compensating for minor deformations of the equipment flange surface, thermal expansion and contraction, and vibration gaps, maintaining a long-term seal. Based on the structural form, metal-wound gaskets can divided into four types: basic type (Type A), inner ring type (Type B), outer ring type (Type C), and inner and outer ring type (Type D). Among, the outer ring is used for positioning and reinforcement, while the inner ring is used to prevent media erosion and excessive compression. Different structures adapt to different flange types and operating conditions, the refinement and scenario-based nature of the design.

Performance Boundaries: A Dialectical Understanding of Advantages and Limitations The performance advantages of metal-wound gaskets are particularly prominent in multicondition adaptation. Their temperature resistance range covers -196°C to  650°C (graphite-filled) and even higher (ceramic fiber-filled), pressure resistance reaching Class 150 to Class 2500, making them suitable for harsh operating conditions involving high temperature and high pressure, alternating hot and cold, and frequent startups and shutdowns. Their excellent compression recovery performance allows them to maintain a stable seal under pressure fluctuations and temperature cycles, effectively reducing the risk of leakage. Meanwhile, their stable structure strong creep resistance result in a service life far exceeding that of ordinary non-metallic gaskets. In scenarios such as petrochemical maintenance and power auxiliary equipment, the replacement frequency can be reduced by about-third, significantly decreasing unplanned downtime and maintenance costs. However, their limitations also require engineers to maintain a clear understanding. First, metal-wound gaskets have high requirements for the flatness the flange face and the uniformity of bolt pre-tightening force. If the flange is warped or the bolt tightening is uneven, it can easily lead to uneven loading and deformation of the, resulting in sealing failure. Second, their performance is highly dependent on the purity of raw materials and the winding process. Poor-quality products are prone to issues such as loosening delamination, and insufficient recovery. Furthermore, the temperature and corrosion resistance of the filler strip are limited by the material; for example, PTFE-filled types are only suitable for corrosive media conditions between -200°C and  260°C, and exceeding this temperature will cause material softening and degradation of sealing performance. Additionally, the procurement cost of metalwound gaskets is higher than that of ordinary non-metallic gaskets, and strict control of pre-tightening force is required during installation to avoid excessive compression causing deformation of the metal skeleton extrusion of the filler strip, or insufficient pre-tightening force leading to initial sealing failure.

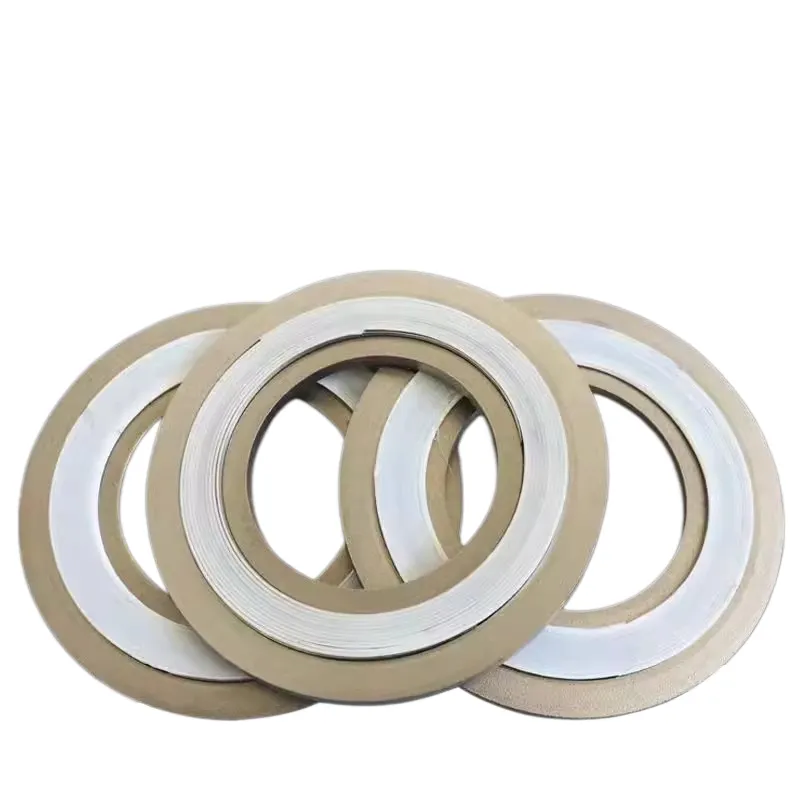

Standard Systems and Material Selection: Technical Red Lines for Operating Condition Adaptation Metal-wound gaskets are highly standardized, with their design and manufacturing following domestic international standards such as GB/T 4622.3, ASME B16.20, DIN EN 1514-1, and JIS B2404, a complete dimensional system. In terms of material selection, the four-dimensional matching principle of "medium-temperature-pressure-flange" must be strictly followed: for conventional high-temperature and high operating conditions, 304/316 stainless steel metal strips with flexible graphite filler are preferred due to their excellent temperature and pressure resistance; for highly corrosive media, corrosion-resistant strips such as 316L stainless steel or titanium alloy with PTFE filler must be selected to ensure material compatibility; for ultra-high temperature conditions (>650°C), ceramic fiber is required to provide a higher temperature limit; for operating conditions with frequent start-stops and large pressure fluctuations, optimized structures such as narrow-band winding and special inner ring designs can be selected enhance the gasket's resistance to relaxation and eccentric loading. Meanwhile, attention must be paid to dimensional differences under different standard systems. For example, parameters such as the number of winding, metal strip thickness, and filler strip width differ slightly between ASME B16.20 and GB/T 4622.3. When selecting, the compatibility between the flange the gasket must be strictly verified to avoid sealing failure caused by dimensional deviations. For special operating conditions (such as nuclear power auxiliary systems, LNG storage tanks, etc.), it is also to consult the manufacturer to select products with type test certificates and third-party test reports to ensure the long-term reliability of the gasket in extreme environments

Installation and Maintenance: Critical Control Points in Engineering Practice The sealing reliability of metal-wound gaskets depends not only on the product quality itself more importantly on the refined control of installation and maintenance. Before installation, the flange sealing surfaces and gasket surfaces must be thoroughly cleaned to remove oil, rust, scratches, and old gasket residues ensuring the contact surfaces are clean and flat; meanwhile, the flatness of the flange faces and the alignment of the bolt holes must be checked, and if defects exist, the flange must repaired or replaced. During installation, the gasket must be accurately placed within the flange sealing surfaces, avoiding skewing or warping, to ensure the metal strip and filler strip are fully in; when tightening the bolts, a diagonal cross-pattern and incremental step-by-step method must be adopted, gradually reaching the specified torque in 3-4 stages, and uniformity of the flange gap must be checked after each tightening to ensure the gasket is evenly loaded and to avoid deformation due to uneven loading. In the maintenance phase, a gasket usage log must established to record the installation time, operating parameters, tightening torque, and leakage conditions, providing data support for subsequent selection and installation. For reusable metal-wound gaskets, an appearance inspection and dimensional must be performed after disassembly; if scratches, deformation, or filler strip extrusion exist on the gasket surface, it must be repaired or replaced; if problems such as delamination or loosening occur a new gasket must be used to avoid sealing performance degradation caused by reuse. Meanwhile, the bolt preload of the flange system must be checked regularly; if bolt loosening or an increased flange gap found, it must be retightened promptly to avoid leakage caused by insufficient preload.

Technological Evolution: From Standardization to Customized Working Condition Adaptation With the iterative development of industrial sealing technology, metal spiral wound gaskets are accelerating their from standardized supply to customized adaptation for specific working conditions. At the material level, the R&D of new high-temperature alloys and corrosion-resistant alloys has further expanded the temperature and resistance range of gaskets. For instance, Inconel 625 alloy can serve long-term at 1000°C, while Hastelloy C26 can withstand strongly oxidizing media. At the structural level, by optimizing winding tension control, interlayer compaction processes, and built-in anti-deformation protection mechanisms, the density, flatness, rebound creep resistance of gaskets have been improved. For example, the "improved high-temperature fixed-winding gaskets" launched by some manufacturers show a measured improvement of over 30 in temperature and pressure stability compared to ordinary products on the market. At the testing level, the popularization of third-party test reports and the mandatory requirement for type test certificates have enhanced product quality transparency and reliability. For instance, the standardization of testing items such as helium mass spectrometry leak detection, compression rebound rate testing, and temperature/pressure resistance testing provides a scientific for engineering selection. Meanwhile, the integration of digital technology has brought a new paradigm to the selection and application of metal spiral wound gaskets. By establishing gasket performance databases and working condition models, engineers can input parameters such as media, temperature, pressure, and flange standards online to quickly obtain the optimal selection solution. Through embedded sensors and Internet of Things (IoT), the sealing status of flange systems can be monitored and warned in real-time, achieving a shift from "post-maintenance" to "predictive maintenance". These technological evolutions not expand the performance boundaries of metal spiral wound gaskets but also drive the paradigm upgrade of industrial sealing from "experience-driven" to "data-driven

Conclusion: The Engineering Rationality Behind Elastic Sealing The widespread application of metal-jacketed gaskets reflects a paradigm shift in industrial sealing technology from " of a single performance" to "synergistic optimization of multiple performances." It retains the "rigid" advantages of metal materials, such as high-temperature resistance, high-pressure, and corrosion resistance, while achieving a "soft overcoming hard" sealing effect through the elastic compensation of the flexible filler strip, providing a durable and reliable sealing guarantee across multiple operating conditions. combination of rigidity and flexibility allows it to play an irreplaceable role in a wide range of scenarios, from conventional high-temperature and high-pressure to ultra-high temperatures, and from corrosive media to frequent start-stop cycles. With the continuous explosion of emerging industries such as new energy, supercritical power generation, and deep-sea oil and gas extraction, the requirements for metal-jacketed gaskets are constantly rising. In the future, higher temperature resistance, stronger corrosion resistance, greater intelligence, and more customization will become the main directions for technological development of metal-jacketed gaskets. For engineers and material researchers, a deep understanding of the structural essence, performance boundaries, and selection logic of metal-jacketed gaskets not only in making better selection decisions for current projects but also reserves critical technical knowledge to cope with more stringent sealing challenges in the future. Within these seemingly ordinary wound gaskets lies the engineering rationality and scientific of the continuous advancement of industrial sealing technology.
