PTFE Gland Packing: Detailed Explanation of Corrosion-Resistant and Leak-Proof Universal Pump

In dynamic and static sealing scenarios for industrial pumps and valves, pipeline valves, reactors, and stirring equipment, shaft end leakage packing wear, media corrosion, and high-temperature failure are the most common challenges in equipment operation and maintenance. Ordinary cotton-linen packing and graphite packing are easily corroded by acids andalis, harden and wear the shaft, and have a short service life. In contrast, PTFE packing, with its excellent corrosion resistance, self-lubricating properties, and temperature stability has become the most widely used universal sealing packing in the chemical, environmental protection, pharmaceutical, and power industries.

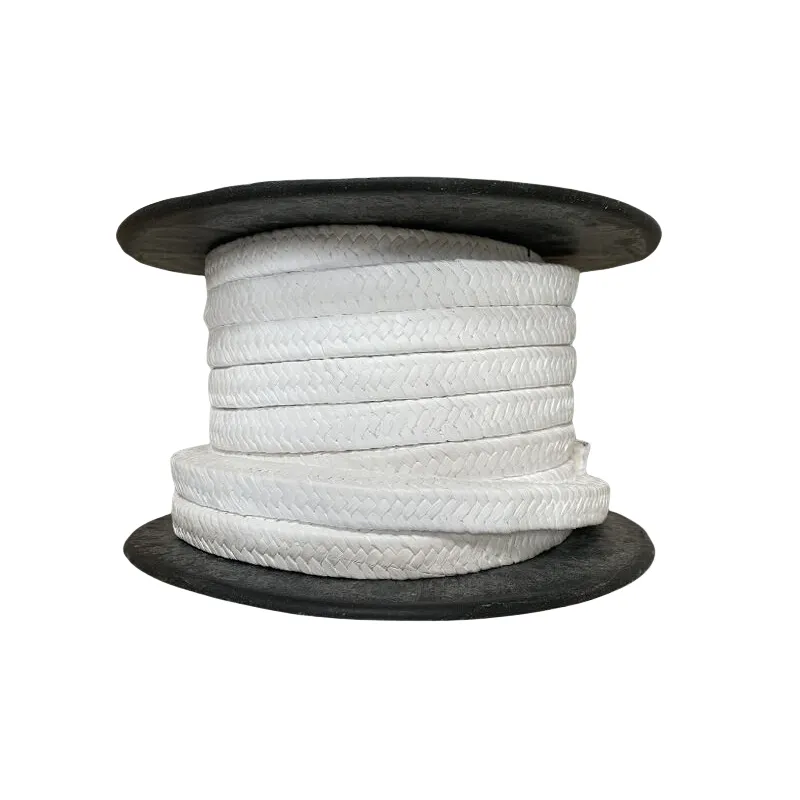

I. What is PTFE Packing? Simply put, it is flexible braided packing sealing material mainly filled in the gaps between pump shafts, valve stems, stirring shafts, and equipment shaft sleeves. It achieves dynamic and static sealing by tightening the gland, preventing the of liquid, gas, and dust media. The pure PTFE material gives it extremely strong chemical inertness, making it the current packing category with the widest media resistance and strongest applicability. 1 Corrosion-resistant to all media, almost immune to corrosion 2. Good self-lubricating properties, does not damage the shaft, low wear 3. Temperature stable, for both hot and cold working conditions 4. Flexible and dense, excellent sealing effect 5. Non-toxic and hygienic, suitable for food and pharmaceutical grade scenarios

II. Core Advantages of PTFE Gland Packing PTFE gland packing inherits the superior corrosion resistance of polytetrafluoroethylene material, of withstanding most media including strong acids, strong alkalis, salt solutions, organic solvents, sewage, oil, and chemical reagents, without swelling, corroding, or deteriorating. is particularly suitable for corrosive chemical environments, completely solving the problems of ordinary gland packing easily rotting, failing, and shedding particles. 2. Good self-lubrication, no shaft, and low wear PTFE itself has an extremely low coefficient of friction. After being braided, its surface is smooth and inherently self-lubricating, resulting in low frictional resistance during-speed equipment operation, without wearing the shaft or damaging the rod. Compared to graphite and cotton gland packing, it effectively protects pump shafts and valve stems, reducing equipment wear and maintenance costs. 3. Temperature stability, suitable for both hot and cold conditions The applicable temperature range for pure PTFE gland packing is -200°C to 260°C It does not crack at low temperatures, melt at high temperatures, or harden. It maintains good flexibility under alternating hot and cold conditions, providing stable sealing performance suitable for various complex including cryogenic, high-temperature, and ambient temperatures. 4. Flexible and dense, excellent sealing effect The braided structure is dense and uniform with excellent flexibility. Once compressed, can perfectly fill shaft gaps and tiny wear gaps, providing strong sealing and making it difficult to leak. It has good resilience, maintaining a stable seal even under slight equipment vibration or shaft. 5. Non-toxic and hygienic, suitable for food and pharmaceutical grade applications The pure PTFE material is non-toxic, odorless, non-polluting, and does leach, meeting the hygiene standards of food, pharmaceutical, and pure water equipment. It is one of the few braided gland packings that can be used in hygienic applications

III. Common Classifications and Differences of PTFE Gaskets - Pure PTFE Gasket: Entirely woven from PTFE without additives, offering strongest corrosion resistance, no shaft wear, and high hygiene standards. Suitable for pharmaceutical, food, pure water, and highly corrosive fine chemical processes, ideal for light to medium-duty. - PTFE Graphite Gasket: PTFE fibers mixed with graphite for weaving, enhancing high-temperature, high-pressure, and wear resistance. It has better heat conductivity, is less to overheating, and is suitable for high-temperature steam, high-pressure pumps, and heavy-duty industrial equipment. - Fiberglass PTFE Gasket (Reinforced): Fiberglass- PTFE weaving, featuring a tighter structure, higher pressure resistance, and strong anti-extrusion capability. Suitable for high-pressure, high-speed, and heavy-duty industrial and valves.

IV. Main Application Scenarios 1. Chemical Industry Acid and alkali transfer pumps, chemical valves, reactor agitator shafts, and corrosion-resistant pipeline valve seals. Compatible with various corrosive chemical media, preventing corrosion and leakage. 2. Environmental Protection and Sewage Treatment Sewage pumps, sludge pumps, circulation pumps, and environmental equipment shaft seals. Resistant to sewage corrosion and sand abrasion, with a service life far exceeding ordinary gaskets. 3. Food, Pharmaceutical, and Pure Water Industries Water purification equipment, pharmaceutical transfer, food processing equipment, and hygienic-grade valve seals. Non-toxic and non-polluting, meeting hygienic production requirements. 4. Power, Thermal, and General IndustryWater pumps, oil pumps, steam valves, and general machinery equipment shaft seals. Temperature and pressure resistant, stable operation, suitable for long-term continuous production processes

V. Installation and Usage Tips for PTFE Gland Packing 90% of gland packing leakage is caused by improper installation. Mastering the following points can significantly extend its service life: 1. Clean the stuffing box: Before replacement, ensure old packing residue and dirt are thoroughly cleaned, and the stuffing box is clean with smooth, burr-free shaft surface. 2. Staggered cut installation: Stagger the cuts of each ring by 90° to 120°, overlapping joints to prevent direct gaps that cause leakage. 3. Gradual tightening of the gland: Tighten the gland evenly and progressively; do not over-tighten all at. Fine-tune the tightness during trial operation to achieve the optimal state of "slight seepage for lubrication, no liquid leakage." 4. Precise selection based on working conditions: pure PTFE packing for corrosive and sanitary conditions; PTFE-graphite packing for high temperature, high pressure, and heavy loads; and reinforced PTFE packing for high pressure and high speed.

VI. Summary With its comprehensive advantages of broad corrosion resistance, stable temperature resistance, self-lubrication without shaft damage, sanitary safety, and high cost-performance, gland packing has become the mainstream product for industrial pump and valve packing seals. Whether for ordinary water, gas, and oil, or highly corrosive and sanitary-grade media, PTFE packing handle it all, making it a fundamental sealing consumable for solving equipment leaks and reducing operation and maintenance costs.
